How Do Hot Water Cylinders Work: Understanding Domestic Hot Water Storage

Hot water cylinders are a central component in your home, providing a ready supply of hot water for baths, showers, and sinks. Unlike a continuous flow system, your hot water cylinder stores a large volume of hot water and maintains its temperature until you need it.
There are two main types of hot water cylinders: vented and unvented. Vented cylinders are connected to a cold water tank. In contrast, unvented cylinders draw water directly from the mains supply.
These cylinders are sealed from the atmosphere and rely on a combination of pressure from the mains and expansion mechanisms. A boiler often heats the water in these systems, although immersion heaters can be used as well.
The installation and placement of your hot water cylinder are important for efficient operation and maintenance. At Plumb2U, we’ll help you understand how hot water cylinders work through this in-depth guide.


Understanding Hot Water Cylinders

Hot water cylinders are central to providing your home with a consistent supply of hot water. They come in various types and configurations, so here’s how to know the differences between vented and unvented cylinders.


Types of Hot Water Cylinders

Depending on your property's specifications and your family's hot water usage, you’ll need to choose between vented and unvented hot water cylinders.

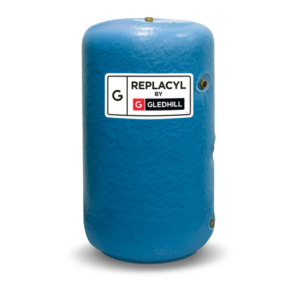

Vented cylinders rely on gravity to move hot water around your home. This requires a storage tank, often found in the attic, to create the necessary pressure. They are generally more straightforward and less costly to install than their unvented counterparts.

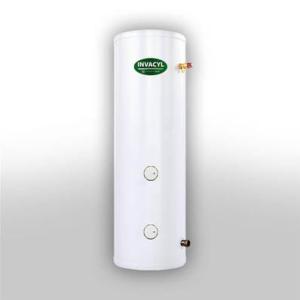

On the other hand, unvented hot water cylinders don't need a cold water tank and instead get their water supply directly from the mains. This design can provide better water pressure and flow rates and comes with added safety mechanisms to cope with the higher pressure. These cylinders offer more space saving options and are often selected for homes with multiple bathrooms or higher hot water demands.

Components and Functionality

Direct hot water cylinder:
These cylinders heat water within the main tank and typically use immersion heaters or solar thermal panels as heat sources.

Indirect hot water cylinder:
Here, an external heat boiler or biomass fuels warm a coil that runs through the cylinder, transferring heat to the water.
The choice between direct and indirect cylinders will largely depend on your existing heating system and personal preferences. Direct cylinders are self-contained units, ideal if you do not have a boiler. In comparison, indirect systems integrate with your central heating setup.
Remember, your hot water cylinder's reliability and efficiency can be significantly affected by the installation quality and maintenance. Proper sizing and professional fitting are crucial to ensure optimal performance and longevity.


Installation and Placement

When it comes to the installation and placement of your hot water cylinder, there are vital factors to consider. This includes the ideal location and the necessary space needed for different cylinder sizes, to ensure efficient operation and ease of maintenance.

Location Considerations

Your hot water cylinder should be situated in a place that supports the type of system you have. For a vented hot water cylinder, which is connected to a cold water tank, often a loft is used to utilise gravity to feed the cylinder.
It's essential to ensure the area is capable of supporting the weight of a full tank. Conversely, an unvented cylinder doesn't need a loft space.
This is because it's fed directly from the external cold water tank, allowing more flexibility with placement. Commonly, these cylinders are found within an airing cupboard to hide them aesthetically and make use of available space.

Space Requirements and Cylinder Size

The size of the hot water cylinder you choose must be proportional to the space available and your hot water needs. For smaller properties, a compact unit may suffice, which can be easily accommodated in a kitchen cupboard or a similar storage area.
Cylinder size often correlates to the number of bathrooms and the household’s overall water usage. Vented hot water cylinders typically need to be placed near their bubble top unit, where excess water can dissipate safely. Ensure that wherever you place your cylinder, it adheres to building regulations and allows for easy access for maintenance purposes.


Operation and Performance

Next up, you'll discover the specifics of how hot water cylinders work to provide consistent hot water supply. Additionally, you’ll find out how they maintain water pressure for your household needs and the crucial role they have in energy consumption and utility savings.

Heating Water

Your central heating system typically includes a hot water cylinder, which is essential for storing and heating water. A direct cylinder uses an internal immersion heater to warm the water.
Alternatively, an indirect hot water cylinder is heated via an external source, such as a system boiler, through a heat exchanger within the cylinder. The heat exchanger transfers warmth from boiler-heated water to the cold water within the cylinder. This ensures you always have a supply of hot water at your taps.


Maintaining Water Pressure

Water pressure is critical for effective system operation. If you have a vented system, gravity plays a key role; the cold water tank must be situated above the hot water cylinder to create the necessary pressure.
On the other hand, an unvented system gets its pressure from the mains water pressure, which is typically stronger and more consistent. Some systems may include a pump to boost water pressure, ensuring an even flow of hot water to all outlets.

Your central heating system typically includes a hot water cylinder, which is essential for storing and heating water. A direct cylinder uses an internal immersion heater to warm the water.
Alternatively, an indirect hot water cylinder is heated via an external source, such as a system boiler, through a heat exchanger within the cylinder. The heat exchanger transfers warmth from boiler-heated water to the cold water within the cylinder. This ensures you always have a supply of hot water at your taps.


Energy Efficiency and Bills

The efficiency of hot water cylinders can significantly impact your energy bills. An energy-efficient cylinder is well-insulated to reduce heat loss and maintain the temperature of the hot water, lessening the need for constant reheating.
Furthermore, modern cylinders may include an expansion vessel to accommodate the expanded water as it heats up, which helps maintain efficiency. Choosing an energy-efficient cylinder model and ensuring it is the right size can contribute to long-term savings on your energy costs.

Maintenance and Safety

Ensuring your hot water cylinder operates smoothly involves vigilant maintenance and understanding its safety features. Regular checks and servicing can help prevent leaks, limescale build-up, and ensure the longevity of your cylinder.

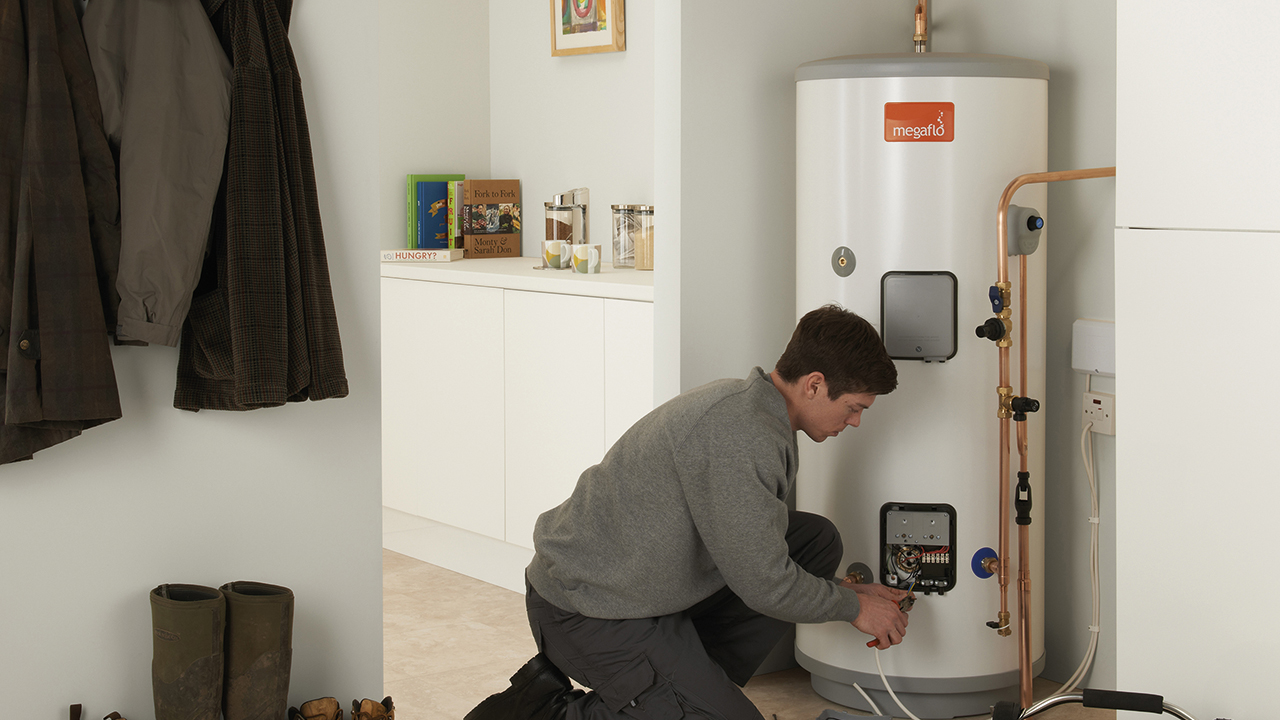

Regular Checks and Servicing

To maintain your hot water cylinder, you should schedule regular servicing at least once a year by a qualified engineer. This will include checking the condition of the anode rod, which protects against rust and corrosion.
It's also crucial to inspect the insulation, often foam insulation, to ensure it's intact and performing well. The thermostat should be checked for accuracy to prevent overheating.
Anode Rod: Check if it's corroded and replace if necessary.
Insulation: Look for any damage to foam insulation.
Thermostat: Test for correct operation.


Dealing with Common Issues

Should you encounter strange noises or signs of leaks, it’s important to address these immediately to avoid further damage. Limescale can cause inefficiency and needs to be cleared out to keep the system running effectively. Monitor for any signs of rust that could indicate a failing anode rod.

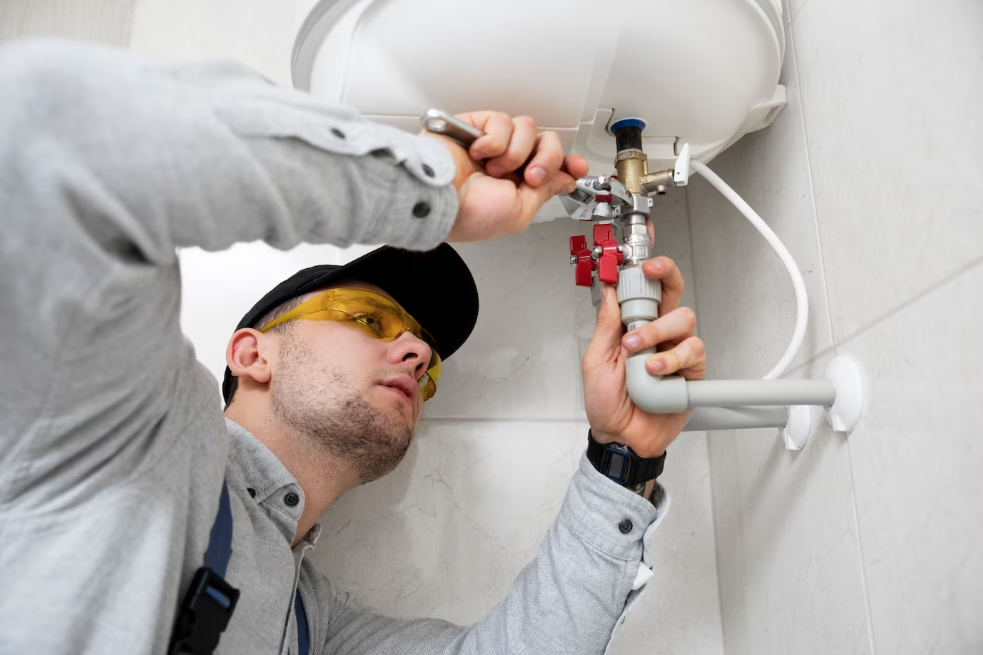

Leaks: Inspect joints and valves for water leaks and have them sealed or replaced.
Limescale: If your area has hard water, look for limescale and use appropriate descalers.
Strange Noises: Gurgling or banging might be due to air in the system or limescale deposits.

Upgrading and Replacing

When your hot water cylinder starts underperforming or becomes less energy-efficient, it might be time to consider an upgrade or replacement. This section will cover recognising the right moment for a replacement, selecting the appropriate new cylinder for your needs, and understanding the critical regulations that apply to the installation.

When to Consider a Replacement

If you've noticed a drop in water temperature, frequent repairs, or if your cylinder is over a decade old, these are clear indicators it's time for a revamp. Vented and unvented hot water cylinders each have their own lifespan and performance metrics. For houses relying on solar power, the efficiency of your hot water storage may also affect your decision to replace your cylinder to ensure optimal compatibility and performance.

Choosing a New Cylinder

Your selection of a new hot water cylinder should be based on the number of people in your house and your typical water usage. An unvented hot water cylinder is often selected for its ability to deliver high pressure and flow without the need for a loft tank.
In comparison, vented cylinders are simpler and more cost-efficient to install and maintain but require gravity to move water around. If space is an issue, a combi boiler could be a viable alternative to a conventional cylinder.
When upgrading, it is worth considering a direct hot water cylinder if your heating system relies on electricity, or an indirect hot water cylinder which connects to a boiler.
Keep in mind that indirect cylinders can be used with renewable heat sources as well, like solar panels. It's essential to consult with a heating engineer or boiler engineer to ensure that your chosen cylinder aligns with your current plumbing system and future needs.

Understanding Regulations

Installation of pressurised unvented hot water cylinders is subject to strict building regulations in the UK, as incorrect installation could pose safety risks. Work must be performed by a qualified plumbing and heating engineer who is well-versed in these regulations.
They will ensure that the cylinder is correctly fitted with all necessary safety mechanisms, such as temperature and pressure relief valves. Moreover, that it complies with the legal standards of efficiency and safety.

Frequently Asked Questions

Still have some lingering queries about how hot water cylinders work? Here are some commonly asked questions about hot water cylinders and the central heating system.

What is the principle behind an indirect hot water tank?

An indirect hot water tank uses a heat exchanger to heat the water. The boiler heats water that then flows through a coil or heat exchanger within the tank, transferring heat to the surrounding water in the cylinder but not mixing directly with it. The heated water is then distributed to taps and showers.

How does an electric hot water cylinder work?

An indirect hot water tank uses a heat exchanger to heat the water. The boiler heats water that then flows through a coil or heat exchanger within the tank, transferring heat to the surrounding water in the cylinder but not mixing directly with it. The heated water is then distributed to taps and showers.

How do the connections in a hot water cylinder system operate?

In a hot water cylinder system, the cylinder is connected to both the water mains for supply and to the household plumbing for distribution of hot water. An unvented system will also contain safety devices like pressure relief valves to maintain safe operating conditions.

How long does a water cylinder keep water hot?

In a hot water cylinder system, the cylinder is connected to both the water mains for supply and to the household plumbing for distribution of hot water. An unvented system will also contain safety devices like pressure relief valves to maintain safe operating conditions.

What are the drawbacks of using hot water cylinders?

One of the main drawbacks of hot water cylinders is their size; they require space for installation. Additionally, they can have higher heat losses compared to combi boilers, making them less efficient. The capacity of the cylinder also limits the amount of hot water available at one time, which might be inconvenient during high demand periods.

Wrapping Up How a Hot Water Cylinder Works

Considering which hot water storage tank to buy is no small investment. That said, this guide has shown you what to consider, like energy efficiency, operation, installation, and proper maintenance techniques.

Whether you choose a vented hot water cylinder for its cost efficiency or an unvented hot water cylinder for its compact sizing, it’s essential to make sure that you schedule regular servicing every year. This helps to maintain the quality of your hot water tanks and have money on energy bills.

If you want your hot water system working at the best of its ability, contact Plumb2U for all your heating and plumbing needs.
